Nutanix API + Python Flask Lab

Overview

Estimated time to complete: 60-90 MINUTES

The Nutanix API + Python Flask Lab will cover a couple of key points.

  • Creation of a simple Python Flask web application.
  • Creation of a single basic view to display cluster details for the user.
  • A backend model to talk to the Nutanix APIs.
  • JavaScript to create the interface between the front- and back-end parts of the application.

Lab Setup

For this lab your laptop of workstation will need to be configured with Python Flask and all required dependencies.

Project Location

You can store your project files anywhere you like. To keep things consistent, we will use a folder named python-lab. This folder will be referred to as the project folder throughout this lab.

Create a folder named python-lab, making sure you have write permissions to that folder. If you are using the command line, some examples for creating the folder are as follows:

../../_images/linux_logo_32x32.png
../../_images/osx_logo_32x32.png
cd ~
mkdir python-lab
cd python-lab
../../_images/windows_logo_32x32.png
cd %HOMEPATH%
mkdir python-lab
cd python-lab

Please ensure you have a command prompt open and have changed to the above directory before continuing.

Virtual Environments

It is recommended that your Python development is done inside a Python virtual environment. Developing in a virtual environment can help replicate and test things like Python setup scripts and ensure all dependencies are met before running a Python script or application.

Even though virtual environments (venv) are now included with Python 3, we’ll use the following command to make sure they work. Please run these commands from the directory your project will be stored in.

../../_images/linux_logo_32x32.png
../../_images/osx_logo_32x32.png
python3.6 -m venv nutanix
. nutanix/bin/activate
../../_images/windows_logo_32x32.png
python.exe -m venv nutanix
nutanix\Scripts\activate.bat

Note

Windows systems: As at January 2019, a default installation of Python 3.6 will be installed in the following folder:

C:\Users\<username>\AppData\Local\Programs\Python\Python36

Note

If you are running through this lab using Nutanix Frame, Python 3.6 has been installed in the c:python36 directory.

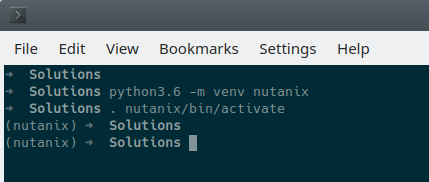

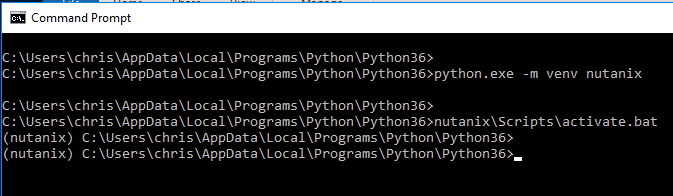

Running these commands to setup and activate a new virtual environment will look similar to the following screenshot.

Note

The (nutanix) designation indicates we are now developing inside the new virtual environment.

../../_images/venv_activated_linux.png
../../_images/venv_activated_windows.png

If you need to leave the virtual environment, use the following command:

../../_images/linux_logo_32x32.png
../../_images/osx_logo_32x32.png
deactivate
../../_images/windows_logo_32x32.png
nutanix\Scripts\deactivate.bat

Note

Even though the commands above run .bat files, PowerShell .ps1 scripts are included, too. If you prefer to use PowerShell, replace activate.bat with Activate.ps1. To deactivate, simply enter deactivate. There is no Deactivate.ps1 as a script is created in memory for this purpose.

If you wish to delete the virtual environment at any stage, simply delete the nutanix virtual environment directory and all its contents.

Note

For more information on virtual environments, please see the official Python virtual environment documentation.

App Dependencies

Our application will require additional Python modules beyond those that are included in the Python Standard Library.

The easiest way to ensure these are available is by using a Python Setup Script.

In our case, the setup script is quite basic and simply installs any dependencies we don’t already have available.

Firstly, make sure you have created and activated a virtual environment, as outlined above. For this lab, your virtual environment should be called nutanix.

  • Create a script in the project folder named setup.py.

This setup script will handle the installation of dependencies required for this Python Flask application:

from setuptools import find_packages, setup

setup(
        name='lab',
        version='1.0.0',
        packages=find_packages(),
        include_package_data=True,
        zip_safe=False,
        install_requires=[
            'flask',
            'flask_assets',
            'jsmin',
            'cssmin',
            'requests',
            'wtforms',
            'flask-wtf'
        ],
)

The final file to create at this stage will allow us to make the app installable. This file is called MANIFEST.in and describes the other files that are to be included during installation. We haven’t created some of these files, yet, but that’s OK for now.

  • Create a file in the project folder named MANIFEST.in and add the following contents:
graft lab/static
graft lab/templates
global-exclude *.pyc

Now, to ensure our dependencies are available, let’s install our app for the first time. This process makes use of both setup.py and MANIFEST.in.

Note

Note: The trailing period below (.) is required.

../../_images/linux_logo_32x32.png
../../_images/osx_logo_32x32.png
pip3 install -e .
../../_images/windows_logo_32x32.png
<python_install_folder>\Scripts\pip3.6.exe install -e .

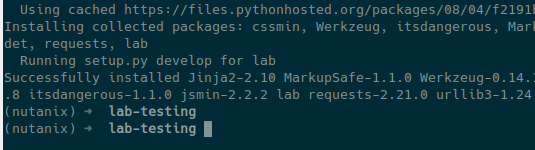

If all dependencies have been found and installed correctly, the end of the output will look something like this.

Note

Note that if you are installing packages you don’t have, the messages regarding installing from cache may be slightly different.

../../_images/dependencies_installed.png

Now our environment is setup to run our Python Flask application using Nutanix REST APIs.

Nutanix API Intro

Before we start creating our app, let’s take a look at how Nutanix describes the APIs we’ll use today.

Those familiar with the Nutanix APIs may wish to skip this section.

The Nutanix REST APIs allow you to create scripts that run system administration commands against the Nutanix cluster. The API enables the use of HTTP requests to get information about the cluster as well as make changes to the configuration. Output from the API calls are returned in JSON format.

The v2 API is an update of the v1 API. Users of the v1 API are encouraged to migrate to v2.

Authentication

Authentication against the Nutanix REST APIs is done using HTTP Basic Authentication. Requests on HTTP port 80 are automatically redirected to HTTPS port 443. This requires that a valid cluster or configured directory service credential is passed as part of the API request.

For the purposes of this lab, we will assume you have access to at least a Nutanix cluster username with a minimum of READ access. Note that a Cluster Admin account is not required to read information via Nutanix API request.

For those attendees or readers following this lab in a presenter-led environment, please use the cluster IP address and credentials given to you by your presenter.

Prism Element “vs” Prism Central

Prism Element APIs are cluster-specific i.e. designed to manage and manipulate entities on the cluster Prism is running on.

Prism Central APIs include a larger set of APIs designed to manipulate entities that aren’t necessarily specific to a single cluster.

API Versions

As at January 2019, there are four publicly available Nutanix APIs. Note that while Nutanix API v0.8 is available via the REST API Explorer in Nutanix Prism, it is strongly recommended to use v2.0 APIs instead. v0.8 is mentioned here for completeness reasons only.

The API versions available today are as follows.

  • v1
  • v2.0
  • v3

Note re security: In the sample commands below you’ll see use of the –insecure cURL parameter. This is used to get around SSL/TLS verification issues when using self-signed certificates. Please consider the potential pitfalls and security implications of bypassing certificate verification before using –insecure in a production environment. The same precautions apply when providing a username and password on the command-line. This should be avoided when possible, since this method shows both the username and password in clear text.

Note re Windows systems: When running the cURL sample commands on Windows 10, single-quote characters () may need to be replaced with double-quote characters ().

API v0.8

Status: Super-ceded by API v2.0

This set of APIs was available when API v1 didn’t yet have the capability to carry out some VM management operations, e.g. VM power state.

Using a combination of v0.8 and v1 APIs, nearly all information and functions available in Prism could be completed via API requests.

Here’s an example of an API v0.8 request to list the VMs running on a cluster.

https://<cluster_virtual_ip>:9440/api/nutanix/v0.8/vms

Alternatively, this HTTPS API request can be carried out using the curl command:

curl -X GET \
  'https://<cluster_virtual_ip>:9440/api/nutanix/v0.8/vms' \
  -H 'Accept: application/json' \
  -H 'Content-Type: application/json' \
  --insecure \
  --basic --user <cluster_username>:<cluster_password>

API v1

Status: Available

This set of APIs, chronologically, was released before the v0.8 APIs. They were used, for example, to manipulate and view VMs, storage containers, storage pools etc. For some time, the v1 and v0.8 APIs were the only way we, as developers, had to interact with Nutanix clusters. Some of the API endpoints could only be used with the AHV hypervisor and some could be used across multiple hypervisors e.g. AHV and ESXi.

Here’s a simple example of a v1 API request to list all storage containers on a cluster:

https://<cluster_virtual_ip>:9440/api/nutanix/v1/containers

Alternatively, this HTTPS API request can be carried out using the curl command:

curl -X GET \
  'https://<cluster_virtual_ip>:9440/api/nutanix/v1/containers?=' \
  -H 'Accept: application/json' \
  -H 'Content-Type: application/json' \
  --insecure \
  --basic --user <cluster_username>:<cluster_password>

One of the reasons to use API v1 today is to collect entity performance information. For example, the application we are building in this lab contains API v1 requests to collect storage performance. An upcoming Nutanix Developer blog article will discuss the API v1 performance metrics and how to use them.

API v2.0

Status: Available

The v0.8 and v1 APIs worked really well. In fact, they were (and still are, in some respects) how the Prism UI gathers data from the cluster. Another over-simplification would be to say that the v2 APIs are where the v0.8 and v1 APIs came together. Many of the entities and endpoints available in v0.8 and v1 were made available in v2, along with a huge amount of backend cleanup, endpoint renaming and generally making the APIs better. The v2 APIs are also the first officially GA API made available by Nutanix.

If you have some exposure to the previous v0.8 and v1 APIs, moving to the v2 APIs will highlight a number of differences. For example “containers” got renamed to “storage_containers” and “storagePools” got renamed to “storage_pools”. The difference? A consistent naming convention in the form of snake-case across all entities.

Here’s a basic example of a v2 API request to list all storage_containers on a cluster:

https://<cluster_virtual_ip>:9440/api/nutanix/v2.0/storage_containers

Alternatively, this HTTPS API request can be carried out using the curl command:

curl -X GET \
  https://<cluster_virtual_ip>:9440/api/nutanix/v2.0/storage_containers \
  -H 'Accept: application/json' \
  -H 'Content-Type: application/json' \
  --insecure \
  --basic --user <cluster_username>:<cluster_password>

Quick Summary

Before moving forward, note that all the APIs above return a JSON response that is easily consumable by many programming or scripting languages.

Also, all the requests above are basic HTTP GET requests and do not require a payload (POST body).

API v3

Status: Available

The v3 APIs, which were released as GA on April 17th 2018, are the first departure from how things were done before.

We had standard GET requests to get data from a cluster and standard POST methods to make changes - the v3 APIs are a bit different. All the previous APIs still required the developer to tell the system what to do and how to do it. The v3 APIs, on the other hand, are the first APIs built around an Intentful paradigm, that is, move the programming from the user to the machine. Instead of writing a ton of code to get something done, we tell the system what the desired state is and the system will “figure out” the best way to get there. This will sound somewhat familiar to those using configuration management frameworks like Salt, Puppet, Chef, Ansible, PowerShell DSC etc.

How this all happens is somewhat beyond the scope of this particular lab but look at the request below. It’s still getting similar information to the previous requests but with a couple of key differences.

  1. It is an HTTP POST request, not GET.
  2. A JSON payload (POST body) is required so that the cluster knows what type of entity to return. In this example, we’re talking about VMs.
  3. We’re telling the system what we want to do with the data. In this case, we want to list all VMs.
  4. While this request can be run without issue against Prism Element, it can also be run against Prism Central. More on that later.
https://<prism_central_or_cluster_virtual_ip>:9440/api/nutanix/v3/vms/list

And the post body:

{"kind":"vm"}

Alternatively, this HTTPS API request can be carried out using the curl command:

curl -X POST \
  https://<prism_central_virtual_ip>:9440/api/nutanix/v3/vms/list \
  -H 'Accept: application/json' \
  -H 'Content-Type: application/json' \
  -d '{"kind":"vm"}' \
  --insecure \
  --basic --user <cluster_username>:<cluster_password>

cURL Command Analysis

As an extra step, let’s take the v3 API request above and look at what each part of the command is doing. If you are familiar with using cURL to make API requests, please feel free to skip this section.

  • `curl -X POST ` - Run cURL and specify that we will be making an HTTP POST request (as opposed to HTTP GET).
  • `https://<prism_central_virtual_ip>:9440/api/nutanix/v3/vms/list ` - Specify the complete URL to send the request to.
  • `-H ‘Accept: application/json’ ` - Specify the content types the client is able to understand.
  • `-H ‘Content-Type: application/json’ ` - Tell the server what type of data is actually sent.
  • `-d ‘{“kind”:”vm”}’ ` - For our POST request, specify the request body i.e. the parameters to send along with the request.
  • `–insecure ` - Tell the cURL command to ignore SSL certificate verification errors (please see the note above re what this means).
  • –basic - Tell the cURL command that we will authenticate using Basic Authentication.
  • –user <cluster_username>:<cluster_password> - Specify the username and password to use during basic authentication.

API Version Use Cases

With what we know about the various API versions now, let’s take a look at why you might use each API.

  • v1: Legacy application support and cluster-wide performance metrics.
  • v2.0: Migration away from legacy APIs, combination of older v0.8 and v1 APIs into single GA API, <em>cluster-specific</em> tasks e.g. storage container information & management.
  • v3 on Prism Element: Latest supported API aimed at managing <em>cluster-specific</em> entities such as VMs.
  • v3 on Prism Central: Latest supported API aimed at managing <em>environment-wide</em> configuration and entities. Unlike API v3 on Prism Element, this includes a vast array of entities such as Nutanix Calm Blueprints, RBAC, Applications, Nutanix Flow Network Security Rules.

App Structure

Now we have a good understanding of the history and progression of the Nutanix REST APIs, lets get to using them inside of our Python Flask application.

Key Directories

The key directories of our app are as follows.

  • A folder called lab. This folder contains our project’s code and all associated files.
  • nutanix/, the folder containing our virtual environment files.

Let’s get started!

  • Create the /lab directory now.
../../_images/linux_logo_32x32.png
../../_images/osx_logo_32x32.png
../../_images/windows_logo_32x32.png
mkdir lab

We’ll create these files as we go through the lab, but here is some info about what each part does.

  • lab/__init__.py, the application’s “main” entry point.
  • lab/static/, the folder containing our JavaScript, CSS and JSON files that describe our main view’s layout.
  • lab/static/js/lib/ and lab/static/css/lib/, collections of third-party JavaScripts and CSS to support our app.
  • lab/templates/, our HTML layouts.
  • lab/util/apiclient/__init__.py, our custom Python class that describes what an API request looks like and the functions associated with it.
  • lab/ajax.py, the Python class that carries out AJAX requests called via JavaScript.
  • lab/forms.py, the Python script that describes the user input form responsible for collecting credentials and cluster IP address.
  • config.py, the Python script that contains configuration information. Note that this file is not in the lab folder!
  • lab/index.py, the Python blueprint responsible for handling the / route (URL).

In addition to the actual project files, most of which don’t exist yet, the Git .gitignore file for this application is as follows. This specific .gitignore file is often used with Python projects. For our app, the instance/ line has been added. If you are using Git to manage your project’s source, this .gitignore is a good one to use.

nutanix/

*.pyc
__pycache__/

instance/

.pytest_cache/
.coverage
htmlcov/

dist/
build/
*.egg-info/

Note

The virtual environment directory is referenced by nutanix above. In your own projects, you should change the nutanix reference to the name of your virtual environment.

The ApiClient class

The first file we’ll create is one of the most supporting files in the app.

This file is the ApiClient class and describes what an API request looks like as well as the functions associated with it.

  • Create the lab/util/apiclient/ folders.
../../_images/linux_logo_32x32.png
../../_images/osx_logo_32x32.png
mkdir lab/util
mkdir lab/util/apiclient
../../_images/windows_logo_32x32.png
mkdir lab\util
mkdir lab\util\apiclient
  • Create the file lab/util/apiclient/__init__.py

The __init__.py file is a reserved filename that Python looks for when instantiating a class.

The contents of __init__.py should be as follows:

#!/usr/bin/env python3.6

import sys
import requests
from requests.auth import HTTPBasicAuth
import json

class ApiClient():

    def __init__(self, method, cluster_ip, request, body, username, password, version='v3',root_path='api/nutanix'):
        self.method = method
        self.cluster_ip = cluster_ip
        self.username = username
        self.password = password
        self.base_url = f"https://{self.cluster_ip}:9440/{root_path}/{version}"
        self.entity_type = request
        self.request_url = f"{self.base_url}/{request}"
        self.body = body

    def get_info(self, show_info=False):

        if show_info == True:
            print(f"Requesting '{self.entity_type}' ...")
        headers = {'Content-Type': 'application/json; charset=utf-8'}
        try:
            if(self.method == 'post'):
                r = requests.post(self.request_url, data=self.body, verify=False, headers=headers, auth=HTTPBasicAuth(self.username, self.password), timeout=60)
            else:
                r = requests.get(self.request_url, verify=False, headers=headers, auth=HTTPBasicAuth(self.username, self.password), timeout=60)
        except requests.ConnectTimeout:
            print(f'Connection timed out while connecting to {self.cluster_ip}. Please check your connection, then try again.')
            sys.exit()
        except requests.ConnectionError:
            print(f'An error occurred while connecting to {self.cluster_ip}. Please check your connection, then try again.')
            sys.exit()
        except requests.HTTPError:
            print(f'An HTTP error occurred while connecting to {self.cluster_ip}. Please check your connection, then try again.')
            sys.exit()

        if r.status_code >= 500:
            print(f'An HTTP server error has occurred ({r.status_code}, {r.text})')
        else:
            if r.status_code == 401:
                print(f'An authentication error occurred while connecting to {self.cluster_ip}. Please check your credentials, then try again.')
                sys.exit()
            #if r.status_code > 401:
                #print(json.loads(r.text)['message_list'][0]['message'])
                #sys.exit()
            # else:
                # print('Connected and authenticated successfully.')

        return(r.json())

A few things to note about this class:

  • The __init__ function runs when the class is instantiated and describes how it should be instantiated.
  • In our ApiClient class, we are setting some properties of the class, such as the IP address of our cluster, the cluster and password (etc).
  • The get_info function is called on-demand after the class is instantiated and carries out the actual API request.
  • The try section of the get_info function attempts to complete the API request and get an HTTP response from the Nutanix API.
  • The remaining except sections specify various exceptions that can be caught and dealt with accordingly. For example, looking for r.status_code >= 500 will catch any HTTP 500 errors. This type of catch-all is bad practice in production environments but suits our basic demo requirements well enough.
  • If no exceptions are caught, the JSON response from the API request is returned via return(r.json()).

With the basic application structure and main supporting class created, we can move forward with creating the other parts of our app.

Initialisation

For this section we’ll build the app based on the structure seen earlier.

Configuration Options

config.py is where our app stores app-specific configuration. For this basic application we are only storing a single static configuration item - the SECRET_KEY required for CSRF protection. For more information on CSRF, please see the CSRF Wikipedia article.

CSRF protection isn’t strictly required for demo or isolated applications, but is a good habit to get into when developing web applications.

  • Create config.py

Note

Please note that config.py should not be in the lab/ folder.

  • Add the following content to config.py:
import os

class Config(object):
    SECRET_KEY = os.environ.get('SECRET_KEY') or 'some strong secret string'

While it’s not mandatory for this lab, we can import this key later to ensure our app is protected against CSRF (Cross-Site Request Forgery).

Initialisation Script

lab/__init__.py is our application’s main initialisation script. This file contains the application factory and instructs Python to treat our lab folder as a package. In our app, configuration and setup, for example, will be carried out inside the factory function and the app returned afterwards. For a more detailed explanation, please see the official factory tutorial.

  • Create a file named __init__.py in the lab/ folder.
  • For our application, the initial contents of __init__.py should be as follows:
import os

from flask import Flask
from flask_assets import Environment, Bundle

from .util import apiclient
from config import Config

def create_app(test_config=None):
    # create and configure the app
    app = Flask(__name__, instance_relative_config=True)

    assets = Environment(app)

    app.config.from_object(Config)

    if test_config is None:
        # load the instance config, if it exists, when not testing
        app.config.from_pyfile('config.py', silent=True)
    else:
        # load the test config if passed in
        app.config.from_mapping(test_config)

    # ensure the instance folder exists
    try:
        os.makedirs(app.instance_path)
    except OSError:
        pass

    return app

Key lines to look for in __init__.py:

  • from flask import Flask makes the Flask web framework available to our application.
  • from flask_assets import Environment, Bundle enables us to store configuration and bring together our static files as bundles.
  • from .util import apiclient and from config import Config imports our ApiClient package and grabs our configuration from config.py.
  • os.makedirs(app.instance_path) attempts to create our instance path that can be used to store local data, e.g. files that won’t be committed to source control. We aren’t explicitly using this folder in our app but it is a useful to know about.

At this point our application will actually “work”. It won’t do anything particularly useful, although now is a good time to see how to run a Python Flask application.

Application first run

Since we are developing a simple demo application, we only have two requirements to run our app. Run these commands in the application’s main folder i.e. not in the lab/ folder.

Important note: If you are running this lab on a non-US keyboard, there is an additional step to ensure Flask runs properly. The commands below are temporary and won’t permanently modify your system.

export LC_ALL=en_US.UTF-8
export LANG=en_US.UTF-8
  • Tell Python Flask where to find our application.
../../_images/linux_logo_32x32.png
../../_images/osx_logo_32x32.png
export FLASK_APP=lab

(nutanix) [root@centos python-lab]# export FLASK_APP=lab
../../_images/windows_logo_32x32.png
set FLASK_APP=lab
  • Tell Python Flask to run our app in development mode:
../../_images/linux_logo_32x32.png
../../_images/osx_logo_32x32.png
export FLASK_ENV=development

(nutanix) [root@centos python-lab]# export FLASK_ENV=development
../../_images/windows_logo_32x32.png
set FLASK_ENV=development
  • Run the application:
../../_images/linux_logo_32x32.png
../../_images/osx_logo_32x32.png
flask run --host 0.0.0.0
../../_images/windows_logo_32x32.png
flask run

At this point, Python Flask tells us exactly what to do in order to test the beginnings of our application:

* Running on http://<ip_address>:5000/ (Press CTRL+C to quit)

If everything is working, you’ll get an error saying the requested URL was not found on the server. This is expected, since we haven’t yet told Flask how to handle requests for the root (/) URL.

Check the output in your console/terminal and you’ll also see the 404 error reflected there, as expected.

127.0.0.1 - - [05/Feb/2019 15:46:06] "GET / HTTP/1.1" 404 -

This is a good test as it verifies everything is setup and working. It also verifies that the dependencies are installed, along with Python Flask being ready to serve your application.

  • Stop the application (Press CTRL+C to quit)

Now let’s start building our application by adding the application’s supporting files.

Supporting Files

In this part of the lab we’re going to add the supporting JavaScript and CSS files. These files are critical to the layout and functionality of the app.

Checking directory structure

Create the following directories and files:

  • lab/static
  • lab/static/css
  • lab/static/css/lib
  • lab/static/css/fonts
  • lab/static/js
  • lab/static/js/lib
  • lab/static/layouts
../../_images/linux_logo_32x32.png
../../_images/osx_logo_32x32.png
mkdir lab/static
mkdir lab/static/css
mkdir lab/static/css/lib
mkdir lab/static/css/fonts
mkdir lab/static/js
mkdir lab/static/js/lib
mkdir lab/static/layouts
../../_images/windows_logo_32x32.png
mkdir lab\static
mkdir lab\static\css
mkdir lab\static\css\lib
mkdir lab\static\css\fonts
mkdir lab\static\js
mkdir lab\static\js\lib
mkdir lab\static\layouts

Adding Third Party Files

From the URLs below, grab the relevant file, make sure the name is correct and extract it into the appropriate directory.

  • CSS - extract to lab/static/css/lib/
  • Fonts - extract to lab/static/css/fonts/
  • JavaScript - extract to lab/static/js/lib/
../../_images/linux_logo_32x32.png
../../_images/osx_logo_32x32.png
../../_images/windows_logo_32x32.png
curl -L https://github.com/nutanixdev/lab-assets/blob/master/python-lab-v1/css-lib.zip?raw=true -o css-lib.zip
curl -L https://github.com/nutanixdev/lab-assets/blob/master/python-lab-v1/fonts.zip?raw=true -o fonts.zip
curl -L https://github.com/nutanixdev/lab-assets/blob/master/python-lab-v1/js-lib.zip?raw=true -o js-lib.zip

Note

If extracting the ZIP files from the command line, ensure they are extracted directly to the directories above and not into subdirectories.

Adding Custom Files

From the URLs below, grab the relevant file, make sure the name is correct and copy it into the appropriate directory.

../../_images/linux_logo_32x32.png
../../_images/osx_logo_32x32.png
curl -L https://raw.githubusercontent.com/nutanixdev/lab-assets/master/python-lab-v1/ntnx.css -o lab/static/css/ntnx.css

curl -L https://raw.githubusercontent.com/nutanixdev/lab-assets/master/python-lab-v1/ntnx.js -o lab/static/js/ntnx.js

curl -L https://raw.githubusercontent.com/nutanixdev/lab-assets/master/python-lab-v1/dashboard.json -o lab/static/layouts/dashboard.json

Referencing Supporting Files

  • Open lab/__init__.py and, under the line that reads assets = Environment(app), add the following Python code.

Important note: Python has strict indentation requirements. For the code below, make sure the indentation begins at the same point as the assets = Environment(app) line.

home_css = Bundle(
        'css/lib/reset.css',
        'css/lib/built-in.css',
        'css/lib/jquery-ui-custom.css',
        'css/lib/jq.gridster.css',
        'css/lib/jq.jqplot.css',
        'css/ntnx.css'
)
home_js = Bundle(
        'js/lib/jquery-2.1.3.min.js',
        'js/lib/classie.min.js',
        'js/lib/ntnx-bootstrap.min.js',
        'js/lib/modernizr.custom.min.js',
        'js/lib/jquery.jqplot.min.js',
        'js/lib/jqplot.logAxisRenderer.js',
        'js/lib/jqplot.categoryAxisRenderer.js',
        'js/lib/jqplot.canvasAxisLabelRenderer.js',
        'js/lib/jqplot.canvasTextRenderer.js',
        'js/lib/jquery.gridster.min.js',
        'js/ntnx.js'
)

assets.register('home_css',home_css)
assets.register('home_js',home_js)

This code block registers two ‘bundles’ that allow our app to correctly load and access the JavaScript and CSS files. Firstly, the bundles are created as home_css and home_js, then registered as application assets using assets.register.

With this done, we can continue with working on our application.

Views, Blueprints and Templates

For our application to function correctly we need a few more things. Primarily:

  • Views, the code that handles requests to specific URLs in your application.
  • Blueprints, a logical grouping of related code and views.
  • Templates, files that contain static data e.g. HTML for layout/display purposes as well as placeholders that will be replaced later with dynamic data.

Views

Because we are writing a single-page application that is accessed via the root (/) URL, we have a view named index whose contents are in lab/index.py. It will handle all requests to the root URL.

However, that view references other views that we haven’t created, yet. To prepare for the main application view, let’s first create the ‘forms’ view. It handles the creation of the form that accepts input from the user.

  • Create lab/forms.py.
  • Add the following content to lab/forms.py:
from flask_wtf import FlaskForm
from wtforms import StringField, PasswordField, BooleanField, SubmitField
from wtforms.validators import DataRequired

"""
The clusterForm class is used to identify the properties used when submitted cluster details
"""
class clusterForm(FlaskForm):
    cvmAddress = StringField('cvmAddress', validators=[DataRequired()])
    username = StringField('username', validators=[DataRequired()])
    password = PasswordField('password', validators=[DataRequired()])
    submit = SubmitField('Go!', id="goButton")

The resources below are for learning more about forms management in Python Flask:

  • wtforms (Forms management for Python Flask)
  • Flask-WTF (Simple integration of Flask and WTForms, including CSRF, file upload, and reCAPTCHA.)

With the forms view created, we look at the main view for our application. Let’s do that now.

  • Create lab/index.py
  • Add the following content to lab/index.py:
from lab.forms import clusterForm

from flask import (
    Blueprint, flash, g, redirect, render_template, request, session, url_for
)
from werkzeug.security import check_password_hash, generate_password_hash

bp = Blueprint('index', __name__, url_prefix='/')

@bp.route('/')
def index():
    # make sure we are using the form that's been generated in forms.py
    form = clusterForm()
    return render_template('index.html', form=form)

You’ll notice that the first thing the index view does is reference the forms view we created a moment ago.

The view does a few things:

  • Registers the ‘/’ URL. Do you recall the 404 error we received when first running our app? This is where we are instructing Flask how to handle requests to the root (/) URL.
  • Creates an instance of our form view
  • Renders the view based on the index.html template (which we will create shortly)

However, for this view to function correctly, we now need to make it available via the application initialisation script.

  • Open lab/__init__.py
  • Below the line that says ` pass`, add the following content, remembering to indent the code correctly:
from . import index
app.register_blueprint(index.bp)

from . import ajax
app.register_blueprint(ajax.bp)

The index view (and ajax view, which we will create shortly) are now available to our app.

Quick question. What will happen if we now run our application? Correct - we will be shown an error saying the ajax view can’t be imported. To fix that and prepare for template creation, let’s create our ajax view now.

  • Create lab/ajax.py
  • Add the following content to lab/ajax.py. (We’ll go through what the view does in an upcoming section).
import os
import json
import base64
import sys
from datetime import datetime
from datetime import timedelta
import time

from flask import (
    Blueprint, flash, g, redirect, render_template, request, session, url_for, jsonify
)
from werkzeug.security import check_password_hash, generate_password_hash

from .util import apiclient

bp = Blueprint('ajax', __name__, url_prefix='/ajax')

"""
get the form POST data provided by the user
"""
def get_form():
    global form_data
    global cvmAddress
    global username
    global password
    form_data = request.form
    cvmAddress = form_data['_cvmAddress']
    username = form_data['_username']
    password = form_data['_password']

"""
load the default layout at app startup
"""
@bp.route('/load-layout',methods=['POST'])
def load_layout():
    site_root = os.path.realpath(os.path.dirname(__file__))
    layout_path = 'static/layouts'
    dashboard_file = 'dashboard.json'
    with open( f'{site_root}/{layout_path}/{dashboard_file}','r') as f:
        raw_json = json.loads(f.read())
        return base64.b64decode(raw_json['layout']).decode('utf-8')

"""
get some high level cluster info
"""
@bp.route('/cluster-info',methods=['POST'])
def cluster_info():
    # get the request's POST data
    get_form()
    client = apiclient.ApiClient('post', cvmAddress,'clusters/list','{"kind":"cluster"}',username,password)
    results = client.get_info()
    return jsonify(results)

"""
get the vm count
"""
@bp.route('/vm-info',methods=['GET','POST'])
def vm_info():
    # get the request's POST data
    get_form()
    client = apiclient.ApiClient('get', cvmAddress,'vms','',username,password,'v2.0')
    results = client.get_info()
    return jsonify(results)

"""
get the cluster's physical info e.g. # of hosts, host serial numbers
"""
@bp.route('/physical-info',methods=['POST'])
def physical_info():
    # get the request's POST data
    get_form()
    client = apiclient.ApiClient('get', cvmAddress,'hosts','',username,password,'v2.0')
    results = client.get_info()
    return jsonify(results)

"""
get the cluster's storage performance
"""
@bp.route('/storage-performance',methods=['POST'])
def storage_performance():
    # get the request's POST data
    get_form()

    # get the current time then substract 4 hours
    # this is used for the storage performance chart
    endTime = datetime.now()
    delta = timedelta(hours=-4)
    startTime = endTime + delta
    endTime = round(time.mktime(endTime.timetuple()) * 1000 * 1000)
    startTime = round(time.mktime(startTime.timetuple()) * 1000 * 1000)

    client = apiclient.ApiClient('get',cvmAddress,f'cluster/stats/?metrics=controller_avg_io_latency_usecs&startTimeInUsecs={startTime}&endTimeInUsecs={endTime}&intervalInSecs=30','',username,password,'v1','PrismGateway/services/rest')
    results = client.get_info()
    return jsonify(results)

"""
get the container info e.g. # of containers
"""
@bp.route('/container-info',methods=['POST'])
def containers():
    # get the request's POST data
    get_form()
    client = apiclient.ApiClient('get',cvmAddress,f'storage_containers','',username,password,'v2.0')
    results = client.get_info()
    return jsonify(results)

Templates

  • Create the lab/templates folder.
../../_images/linux_logo_32x32.png
../../_images/osx_logo_32x32.png
mkdir lab/templates
../../_images/windows_logo_32x32.png
mkdir lab\templates

Inside the templates folder we are going to create two templates. These are as follows:

  • base, the master template that our application’s main view will be based on.
  • index, the application’s main view i.e. the one that we’ll actually see.

Both templates are mostly HTML, with the exception of a few placeholders. The placeholders are identified by being enclosed in {{ and }} and will be replaced with dynamic data when the template is rendered.

  • Create lab/templates/base.html
  • Add the following content to lab/templates/base.html:
<!doctype html>
<html lang="en">
    <head>
        <meta charset="utf-8">
        <meta http-equiv="X-UA-Compatible" content="IE=edge,chrome=1">
        <meta name="viewport" content="width=device-width, initial-scale=1">
        <title>{% block title %}{% endblock %} - Lab</title>

        {% assets 'home_css' %}
            <link rel="stylesheet" href="{{ ASSET_URL }}">
        {% endassets %}

    </head>
    <body>
        <nav class="navbar navbar-default navbar-fixed-top main-nav">
            <div class="container-fluid">
                <div class="collapse navbar-collapse">
                    <ul class="nav navbar-nav">
                        <li><a href="#">Home</a></li>
                        <!--<li><a href="#" class="saveLayout">Save Layout</a></li>
                        <li><a href="#" class="defaultLayout">Revert to Default Layout</a></li>-->
                    </ul>
                    <form method="post" class="navbar-form navbar-left">
                        <div class="form-group">
                            {{ form.hidden_tag() }}
                            {{ form.cvmAddress(class="form-control",placeholder="Cluster/CVM IP") }}
                            {{ form.username(class="form-control",placeholder="Cluster Username") }}
                            {{ form.password(class="form-control",placeholder="Cluster Password") }}
                            {{ form.submit(class="btn btn-primary") }}
                        </div>
                    </form>
                </div>
            </div>
        </nav>
        <section class="content">
            {% for message in get_flashed_messages() %}
                <div class="flash">{{ message }}</div>
            {% endfor %}
            {% block content %}{% endblock %}
        </section>

        <div style="height: 70px; clear: both;"></div>

        {% assets 'home_js' %}
            <script src="{{ ASSET_URL }}"></script>
        {% endassets %}

    </body>

</html>
  • Create lab/templates/index.html.
  • Add the following content to lab/templates/index.html:
{% extends 'base.html' %}
{% block header %}
    {% block title %}Home{% endblock %}
{% endblock %}

{% block content %}

<div class="container" style="margin-top: 20px;">
    <div class="row">
        <div class="col-md-15">
            <div class="container">
                <div class="row">
                    <div class="col-md-15">

                        <div class="gridster">
                            <ul>
                                <!-- The grid layout will end up here, once it is generated -->
                            </ul>
                        </div>

                    </div>
                </div>
            </div>
        </div>
    </div>
</div>

{% endblock %}

We already know that the base template will be used as the master template for all others in our app. In our specific application we only have a single ‘visible’ view - the index.

Most of the content above will look very familiar, but with the addition of this line in particular:

{% extends 'base.html' %}

We can now tell that the index template is rendered using the base template.

Now let’s look a little deeper into the ajax view and see how it works.

JavaScript and AJAX

The JavaScript Function

The ajax view is a key part of our application. It gets used via various JavsScript functions, stored in lab/static/js/ntnx.js file. When the user enters their cluster or CVM IP address, credentials and hits the ‘Go!’ button, JavaScript makes various calls to the Nutanix APIs. These calls are handled via AJAX so the user’s browser doesn’t get refreshed every time.

As an example, let’s first take a look at the JavaScript function that gets a count of VMs running on our cluster.

vmInfo: function( cvmAddress, username, password )
{

    vmData = $.ajax({
        url: '/ajax/vm-info',
        type: 'POST',
        dataType: 'json',
        data: { _cvmAddress: cvmAddress, _username: username, _password: password },
    });

    vmData.success( function(data) {
        NtnxDashboard.resetCell( 'vmInfo' );
        $( '#vmInfo' ).addClass( 'info_big' ).append( '<div style="color: #6F787E; font-size: 25%; padding: 10px 0 0 0;">VM(s)</div><div>' + data['metadata']['count'] + '</div><div></div>');
    });

    vmData.fail(function ( jqXHR, textStatus, errorThrown )
    {
        console.log('error getting vm info')
    });
},

Here are the most important steps carried out by this function:

  • vmInfo: function( cvmAddress, username, password ) - the name of the function, accepting the cluster/CVM IP address & and credentials.
  • vmData = $.ajax({ - use jQuery to initiate an AJAX request.
  • url: ‘/ajax/vm-info’, - the URL of the AJAX call that will be made.
  • The block beginning with vmData.success( function(data) { - the JavaScript that will run when the AJAX call is successful.
  • The block beginning with vmData.fail(function ( jqXHR, textStatus, errorThrown ) - displays a message in the browser console when any error is encountered. Of course, this “catch-all” approach is something that should be avoided before deploying to or developing for a production environment, but provides information that can be used to diagnose an issue.

The AJAX

Now that we are familiar with the simple JavaScript code that will make the AJAX call, let’s look at the Python code that carries out the first part of the API request.

This Python code is stored in lab/ajax.py.

"""
get the vm count
"""
@bp.route('/vm-info',methods=['GET','POST'])
def vm_info():
    # get the request's POST data
    get_form()
    client = apiclient.ApiClient('get', cvmAddress,'vms','',username,password,'v2.0')
    results = client.get_info()
    return jsonify(results)

Here are the most important steps carried out by this function:

  • @bp.route(‘/vm-info’,methods=[‘GET’,’POST’]) - Specify the URL that will respond to the AJAX call and allow both GET and POST methods. During testing it can be useful to allow both methods, although production apps would only allow the methods that are explicitly required.
  • get_form() - Get the user data available in the POST request. This includes the CVM/Cluster IP address, username and password.
  • client = apiclient.ApiClient(‘get’, cvmAddress,’vms’,’‘,username,password,’v2.0’) - Create an instance of our ApiClient class and set the properties we’ll need to execute the API request.
  • results = client.get_info() - Execute the actual API request.
  • return jsonify(results) - Convert the API request results to JSON format and return the JSON back to the calling JavaScript, where it will be processed and displayed in our app.

Note

You’ll notice a few parameters being passed during instantiation of the ApiClient class. As an optional step, open lab/util/apiclient/__init__.py and look at the other parameters that can be passed. For example, you can specify the API endpoint we’re interested and the API version. These are useful options for using the same ApiClient class with different versions of the APIs.

The API request

Because the Nutanix REST APIs are designed to be simple to use, it’s very easy to understand what the request itself is doing.

In the Nutanix API Intro section of this lab, we looked at the various Nutanix API versions that are available to you. In the example above, we are using Nutanix API v2.0 to get a count of VMs running on our cluster. The JavaScript making the AJAX call and the Python executing the API request, are constructing the following GET request.

Note

The request coming from the JavaScript to our Python view is an HTTP POST request. The request to the API itself, in this example, is an HTTP GET request.

https://<cluster_virtual_ip>:9440/api/nutanix/v2.0/vms

If you were to change <cluster_virtual_ip> to your cluster IP address and browse to that URL, you would probably see an error saying “An Authentication object was not found in the SecurityContext”. That’s because we haven’t specified the credentials that should be used for the request.

Note

If you have an open browser tab where you are already logged in and authenticated with an active Nutanix Prism session, it is possible the request may succeed, depending on your browser’s cookie settings.

Now that we have our API request URL, we can add HTTP Basic Authentication in the form of a username and password, then simulate the entire request using cURL. For this quick test we will assume the following:

  • Cluster virtual IP address - your HPOC Cluser IP
  • Cluster username - admin
  • Cluster password - techX2019!
curl -X GET \
  https://<*ClusterIP*>:9440/api/nutanix/v2.0/vms \
  -H 'Accept: application/json' \
  -H 'Content-Type: application/json' \
  --insecure \
  --basic --user admin:nutanix4u

Please be mindful of the –insecure parameter, as detailed in the lab intro.

Testing The App

With our JavaScript, AJAX, CSS, views and templates now in place, it’s a good time to run our application and see what happens.

If you don’t currently have your virtual environment activated or if the application isn’t running, these are the steps to do so. Make sure you are in the application’s directory before running these commands.

../../_images/linux_logo_32x32.png
../../_images/osx_logo_32x32.png
. nutanix/bin/activate

export FLASK_APP=lab

export FLASK_ENV=development

flask run --host 0.0.0.0
../../_images/windows_logo_32x32.png
set FLASK_APP=lab

set FLASK_ENV=development

nutanix\Scripts\activate.bat

flask run
  • Browse to http://127.0.0.1:5000 on your local machine to view your application.
  • If everything is setup correctly, you will see a basic HTML form prompting for a Cluster/CVM IP, your Cluster Username and Cluster Password.

You’ll also see a number of styled and labelled “containers”, ready for our cluster info to be displayed.

Fill out the following fields:

  • Cluster/CVM IP - The IP address of your cluster or CVM
  • Cluster Username - Cluster username. Note that this can be a read-only account.
  • Cluster Password - Cluster password.
  • Click Go!

If everything has been created and all parts of the application wired up correctly, the application will carry out our API requests via AJAX, process the results and display it all nicely on our page.

A successful test run will look similar to the screenshot below, although your cluster details will be different.

../../_images/flask_app_run_final.png

Final Thoughts

With this app built from scratch, you should now have a solid idea of how a Python Flask web application can be built to integrate with the Nutanix APIs.

For further information on the Nutanix REST API versions and the data that is exposed by them, please see the Nutanix Developer Portal. There will you find code samples, documentation and information on everything from the APIs we used today (v1 and v2.0) through to v3 APIs, the current “intentful” API implementation.

Takeaways

The Nutanix APIs have been designed in a way to make them easily accessible from any platform of your choice. For example:

  • Web application e.g. Python Flask as used today
  • Script e.g. PHP, PowerShell, Python shell script
  • Postman for GUI testing

For additional information on the Nutanix APIs, including the current API reference, please see the Nutanix Developer Portal.

Back to Top
